Description

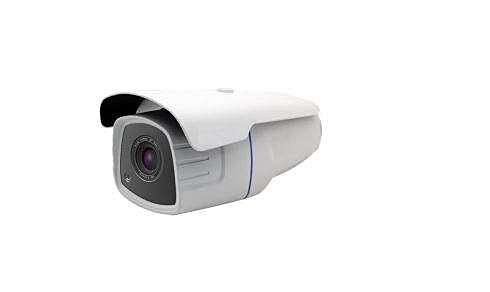

Bi-spectral Infrared Body Temperature Fast Screening Instrument

The dual-view infrared USS-TIC-500 series dual-spectrum infrared body temperature rapid screening instrument is mainly developed based

on the principle of infrared thermal radiation. It uses a non-refrigerated core and low signal-noise image processing technology. It is a non-
contact, real-time, continuous and accurate Temperature measuring equipment. At the same time, a dedicated software system can be used

to visually display the temperature information of the temperature measurement objects. It can be used for entry-exit health quarantine at
customs, airports, stations, terminals, land ports, and epidemic prevention in key places such as schools, hospitals, office buildings Control
scenes are widely used.

Key Features

• Thermal imaging function:
• Resolution 384 × 288, high sensitivity detector
• Highest temperature cross cursor positioning
• Supports point, line, rectangle, and irregular area temperature measurement modes
• Support human body temperature abnormal alarm function
• Support automatic capture of moving face targets
• Support wearing a mask to identify the face area to avoid false alarms from non-face high temperature objects
• Visible light phase function:
• 500W high-definition visible light detector
• Supports automatic exposure control and automatic white balance
• Supports face temperature measurement mode, intelligently analyzes face targets and measures body temperature, supports
• multiple alarm linkages
• Dual light temperature measurement linkage, can draw regular and superimposed temperature measurement information on visible
• light image
